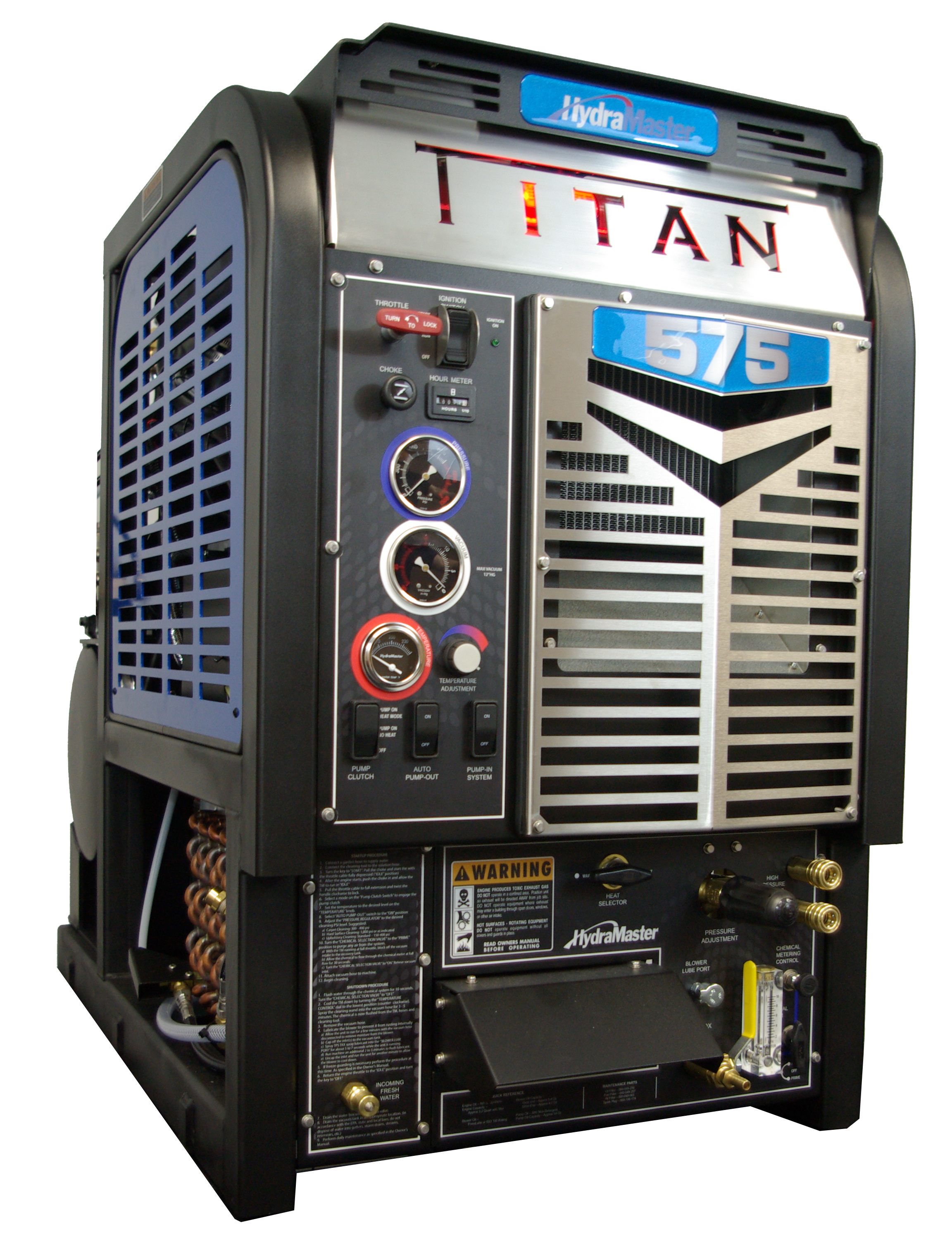

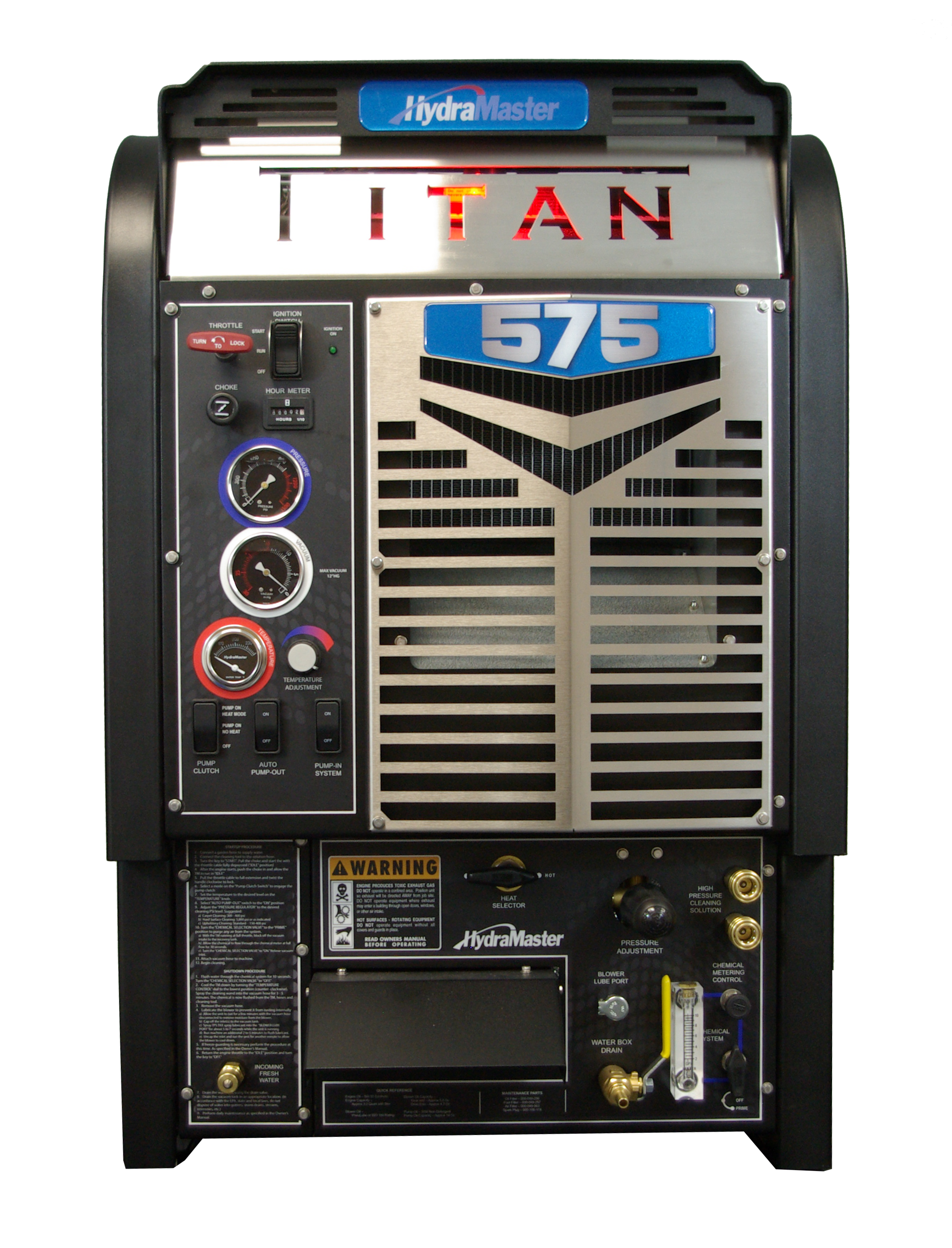

Hydramaster Titan 575HP
Uncompromising Performance,
Incredible Cleaning Temperatures,
Maximize your Investment!
The New TITAN 575HP from HydraMaster does more than clean faster, clean deeper, and reduce drying times.
It transforms the image you provide to your customer by your investment into one of the finest cleaning powerhouses every constructed.
It’s a cleaning beast for sure, but after your customers see it work, it will boost your business to a new level.
The TITAN 575HP is not just a carpet cleaning machine — it’s now a complete mobile surface cleaning plant – built for growth, flexibility, durability, and profitability.
This includes heated pressure washing and dual wand capable hard surface and textile surface cleaning – all as a standard feature!
Applications:
Residential and Commercial Carpet Cleaning.
Up to 2,000 psi Pressure Washing with full waste recovery capabilities.
Upholstery Cleaning.
Concrete, Stone, Tile and Grout Cleaning.
Water Extraction.
A Dual Wand Workhorse – Performance in the most challenging environments
What Enhancements Have Been Introduced with the new TITAN 575HP?
Now Standard on the 2026 TITAN 575HP:
2,000 PSI Heated Pressure Washing Capability – This upgrade unlocks a major new revenue stream for operators by allowing you to expand into:
– Heated (limited heat) pressure washing
– Hard surface and exterior cleaning
– Fleet, shop, and equipment washdowns
– Tile, concrete, luxury vinyl plank and stone restoration
What Makes This Possible?
Stainless Steel Engine/Blower Exhaust Heat Exchanger/Thermal Accumulator
– Upgraded to stainless steel for higher heat tolerance, durability, and pressure
– Enables heated water at 2,000 PSI
– Built for long-term reliability in high-demand applications
GP High-Pressure Stainless Steel Chemical Pump (Rated at 3,000 PSI)
– Commercial-grade Stainless Steel GP pump
– No diaphragm design = less service, less maintenance, longer life
– Built to handle continuous high-pressure operation
The TITAN 575HP Exhaust System now also comes standard with Cerakote® ceramic coating
– Reduces radiant heat inside the van
– Lowers internal ambient temperatures
– Protects surrounding components
– Extends lifespan of belts, hoses, wiring, and electronics
Result:
Cooler van. Longer machine and component life. Less wear. Fewer service issues.
Liquid Cooled Kubota 32.5HP Engine – Delivers Maximum Power and Reliable Longevity.
Uncompromising Cleaning Solution Temperature –
Best in class performance — single wand, dual wand, or hard surface cleaning.
Vacuum and Water Extraction Recovery – 400+ CFM for Faster Drying, Faster Restoration!
Dual Wand Capable – plumbed and prepared for you to double your productivity when you need to!
Patented Heat Control System – ADC Control Diverter manages heat for more consistent temperature delivery and virtually eliminates dumping fresh water during cleaning and water extraction.
Quieter Performance – Opti Air Flow System and dual oil bath helical gear tri-lobe blower reduces noise resulting in the quietest machine in its class.
Simplified Maintenance – “Arms Length” design and removable magnetic panels allow for easy access to crucial components and serviceable parts.
• Kubota® 32.5 HP Liquid Cooled Engine with 3-year manufacturer’s warranty
• Keyless electronic ignition
• Exceptionally rigid cast iron block
• 3 cylinder OHV design
• Fuel-efficient technology, approx 6.4 litres per hour at 300 PSI
• Operating at 3000 RPM
• General HTX-1813 High Pressure Pump
• 4.0 GPM volume
• 2,000 PSI heated pressure
• 4007 Dominator™ Tri-Lobe Blower
• HydraMaster exclusive design
• Dual oil bath design with sight level windows
• Durable helical gear drive
• 400+ CFM
• Multi-Stage Thermal Capture and Heat Exchange System
• MAX-TEMP Control
• Cleaning solution temperature of 230-250°F
• Subcategory: Slide In
• Dimensions: 26”W x 39”H x 45”D 660mm W x 990mm H x 1140mm D
• Weight: 900 lbs 410kg
• Engine: WG 972 Kubota 32.5HP liquid cooled
• Ignition: Electric keyless start
• Vacuum Blower: Competitor™ 4007 Tri-Lobe, HydraMaster exclusive design, 400+ cfm, dual oil bath
• Pump: 4.0 gpm plunger pump, 2,000 psi heated, electric clutch control
• Chemical System: Last-step chemical injection, meter controlled
• Heating System: Stainless steel Tube and fin heat exchanger with ADC temperature control
• Recovery Tank: 70 gallon MaxAir™ recovery tank; aluminum, baked-on powder coated finish, includes stainless steel filter and filter basket, 36 1/2″L x 10 1/2″W x 31″H, 100 lbs
• Solution Hose Length: 100 ft x 1/4″
• Vacuum Hose Length: 100 ft x 2″
• Wand Capacity: Dual
• Fuel Consumption: approx 6.4 litres per hour
• Uses: Residental and Large Commercial
The price includes a waste water tank, a 2 jet Evolution wand, 100 feet of 2″ vacuum hose, 100 feet of solution hose, professional installation into your van, a 12 volt battery and also training on the correct use and maintenance of the machine.
Optional Accessories:
Submounted Fresh water tank with pump in system
Aluminium Fuel tank
Choice of manual or electric Hose reels
Remote control system
We also offer Line-X spray on polyurethane floor linings to waterproof and protect the back of your van.
